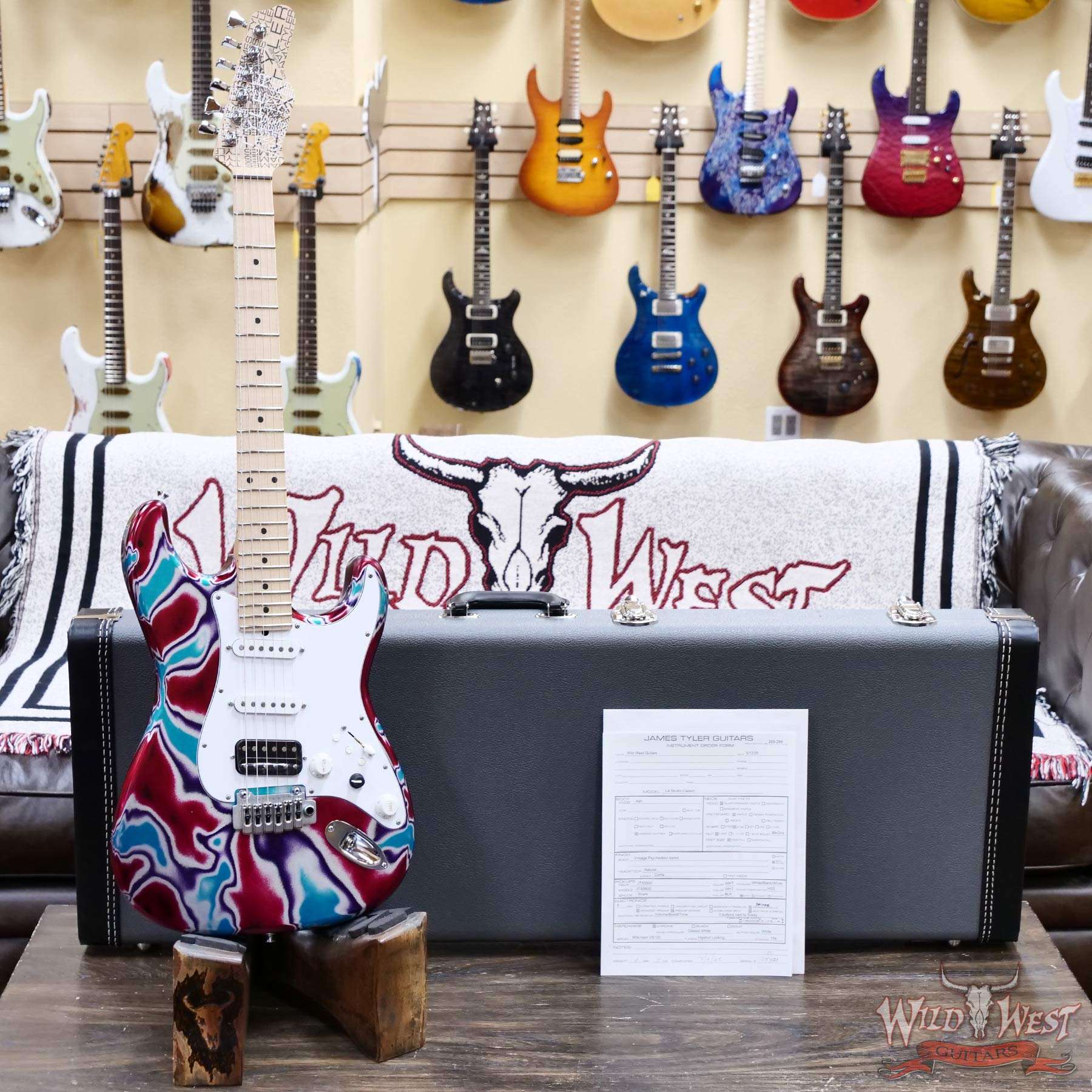

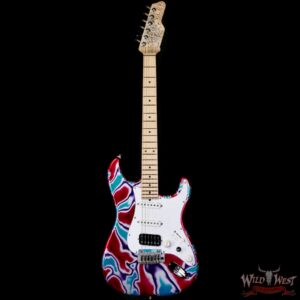

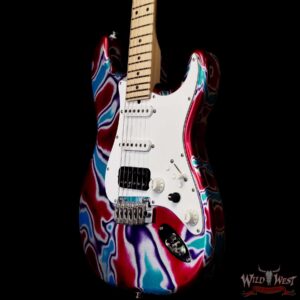

James Tyler USA LA Studio Classic HSS with Studio Elite Headstock Wilkinson VS-100 Bridge Psychedelic Vomit 7.45 lbs

About This Guitar,

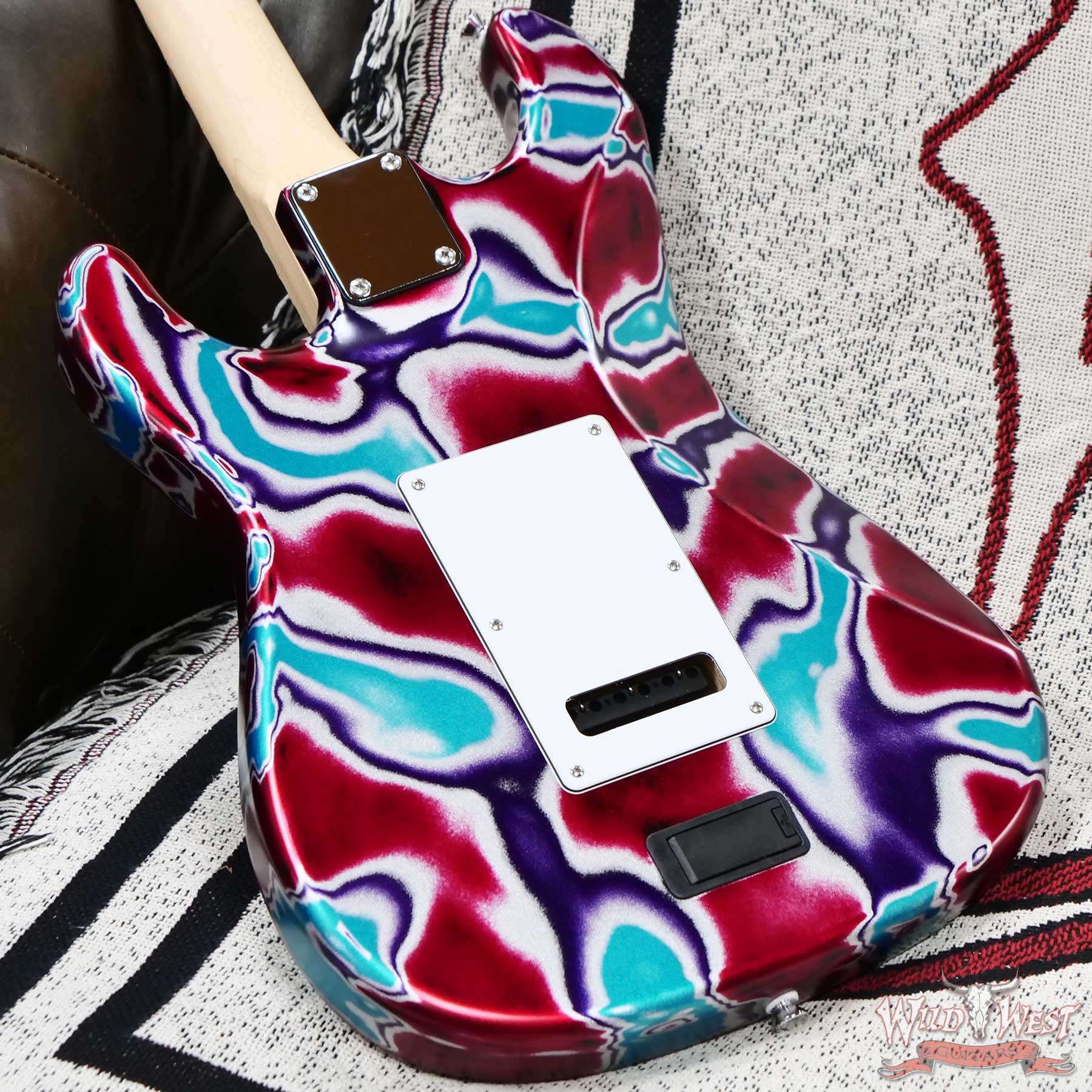

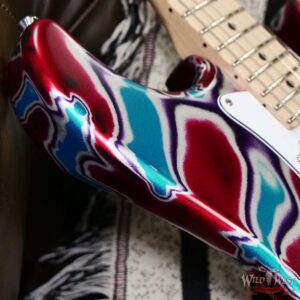

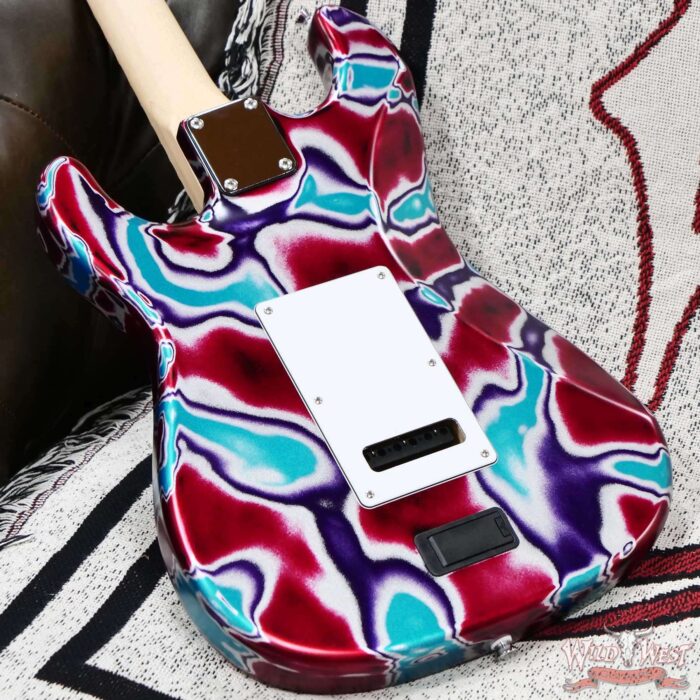

This LA Studio Classic pays tribute to Mike Landau’s original Tyler guitar. It features the Psychedelic Vomit finish — the very first and most iconic example of the “Tylerized” aesthetic. This finish started it all and remains one of the most recognized visuals in the James Tyler legacy.

It also comes with a COMA logo on the headstock and a Wilkinson VS-100 bridge — just like Landau’s guitar.

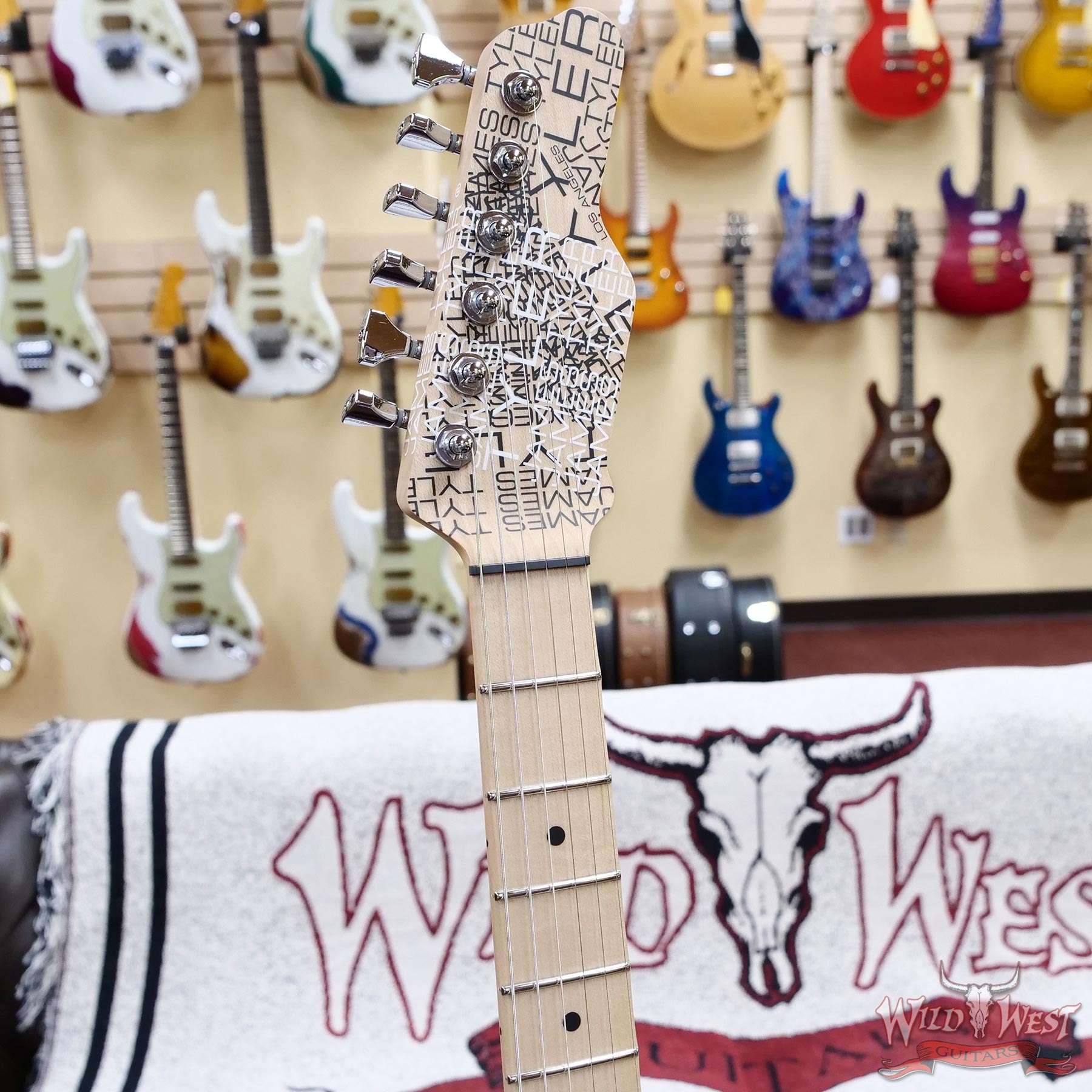

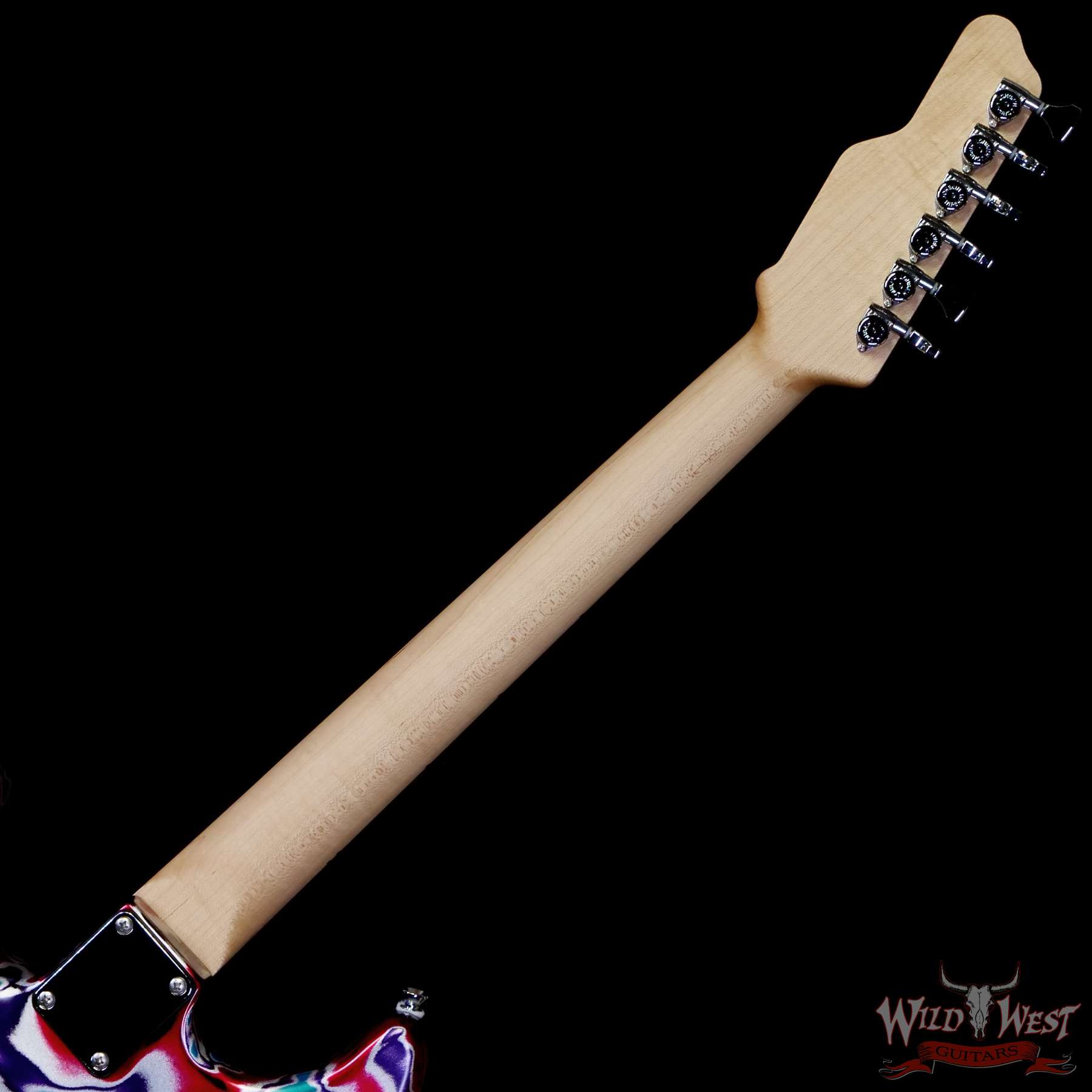

Unlike most LA Studio Classics that use the narrower and lighter Classic headstock, this guitar is built with the wider and heavier Studio Elite (SE) headstock. We chose the SE headstock deliberately, as our testing confirms that the added mass improves resonance and sustain.

JTS 5500 – Neck/Middle Singlecoil

Alnico 5 Single Coil

Neck: Characterized by the familiar sound of the Alnico 5 magnets with more attack, more chime and more power. Full, balanced and responsive with good low end and upper mid sparkle. Wound for SSH application using a 500k volume pot. Nice vibrant 3D qualities.

Middle: Has the same characteristics of the neck but is reverse wound and has reverse polarity for hum cancelling in switch positions 2 and 4. Nice vibrant 3D qualities.

Neck: alnico 5 magnets, counter clockwise winding direction on neck and bridge pickups, clockwise winding direction on middle pickups, north pole top on middle pickups, south pole top on neck and bridge. dc specs 6.90 +/-

Shark – Bridge Humbucker

High Output Humbucker

Good tight low end. Good bark in the mids but still even sounding. Sweet singing highs with a lower peak. Fat single notes with a nice taste of compression. Big articulate overdrive.

Alnico 5 magnets, counter clockwise winding direction, screw coil south and slug coil north polarity, 53mm wide f spacing, 50mm narrow g spacing. straight humbuckers have a standard coil layout and slanted humbuckers have a traditional tyler coil layout with pickup at angle and offset coils. dc specs 15.70 +/-
