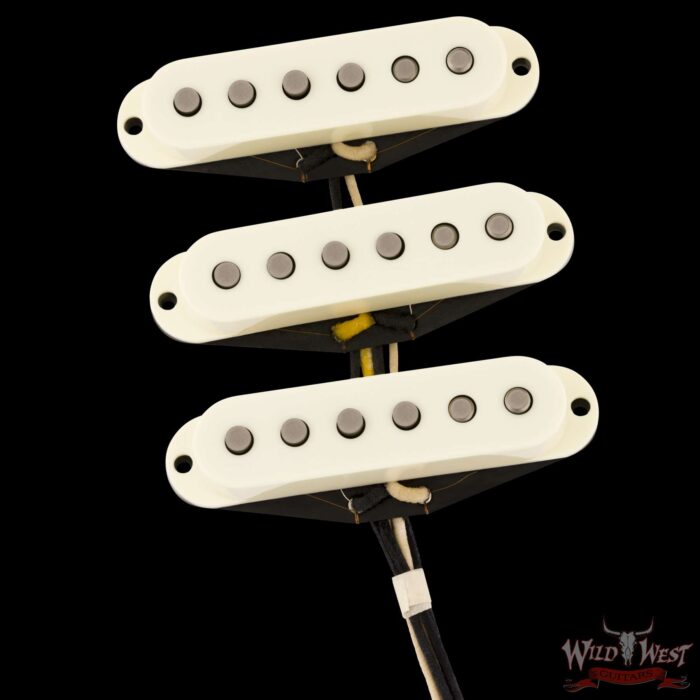

Fender Custom Shop Josefina Hand Wound Dual Mag II Stratocaster® Pickups

Fender Custom Shop Josefina Hand Wound Dual Mag II Stratocaster® Pickups

MODEL #:0992381000

Hand wound in the Fender® Custom Shop by Master Pickup Winder, Josefina Campos, the Dual-Mag II Strat® pickups produce well-balanced tone with shimmering, clear highs and balanced, rich lows courtesy of a mix of alnico 2 and 5 magnets. Featuring unbeveled alnico 5 magnets from the low E through G and hand-beveled alnico 2 magnets for the B and high E. Each pickup is wrapped with copper shielding tape to reduce noise.

Featuring a custom stagger with a “low G” magnet that provides a smooth transition from the wound to plain strings. The alnico 5 beneath the G makes that string “sing” just right and the alnico 2 B&E magnets are slightly taller than vintage spec to help create string-to-string balance. The Dual Mag II Strat® pickup is quite faithful to its name with two magnets that give you one of the clearest, most well-balanced sounds you’ll ever hear.

Master Builder Josefina Campos

Josefina Campos is one of the most revered pickup builders in the industry. She apprenticed under the legendary “Queen of Tone” Abigail Ybarra for three years, soaking up Abby’s 50+ years of knowledge and mastering her unrivaled winding techniques. Upon Abigail’s retirement, Josefina took her rightful place amongst the Fender Custom Shop’s Master Builders. Today, Josefina’s pickups produce some of the most sought-after tones in the world.

• Hand Wound by Josefina Campos
• Alnico 5 on low E through G and hand-beveled alnico 2 on B and high E
• RWRP middle pickup to eliminate hum in positions 2 and 4
• Formvar-coated magnet wire improves overall brightness
• Wrapped with copper shielding tape to reduce noise
• Cloth wire and fiber bobbin

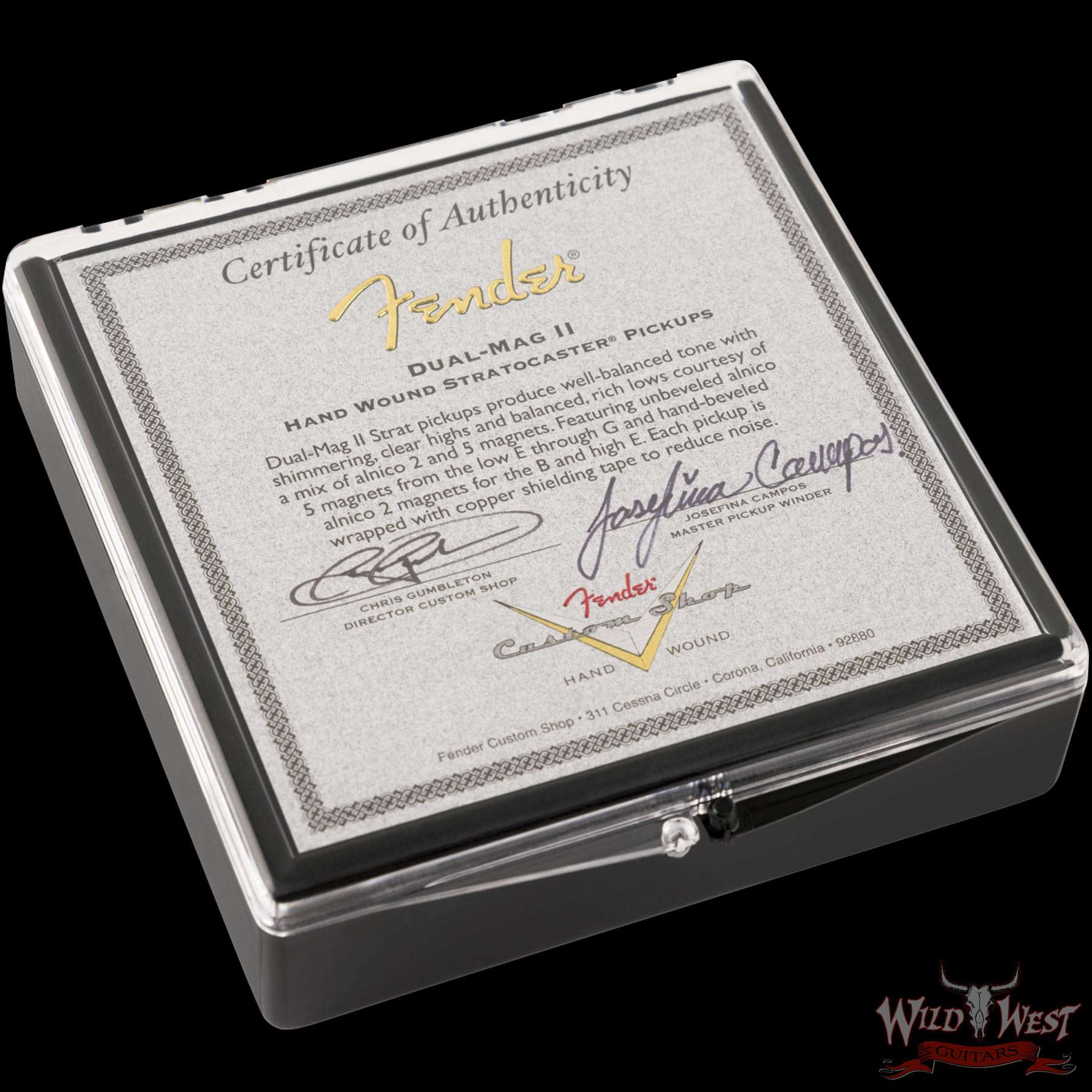

• Signed certificate of authenticity
• Includes installation hardware

• PICKUP CONFIGURATION-SSS
• LEAD WIRE-Cloth-covered
• MAGNET TYPE-Alnico 2 and 5
• MAGNET WIRE-Formvar-coated
• POLE PIECES-Staggered
• BOBBIN MATERIAL-Fiber
• OUTPUT-Moderate
• DC RESISTANCE-Neck: 5.85k, Middle: 5.9k, Bridge: 5.95k
• INDUCTANCE-Neck: 2.65H, Middle: 2.72H, Bridge: 2.84H
